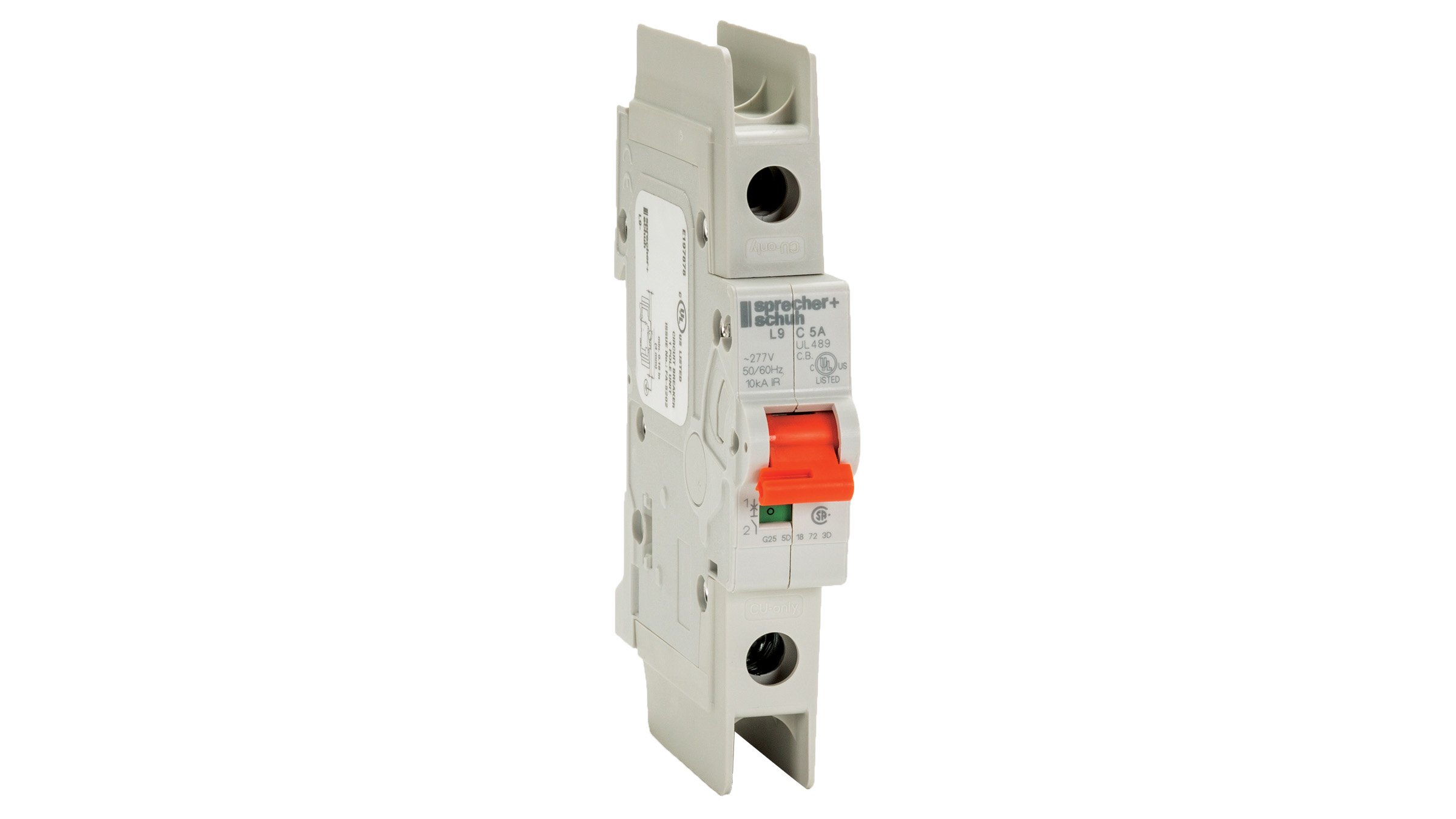

Series L9 Miniature Circuit Breakers
Specifications
- IP20 protection for Accidental Contact
- Color-coded handle for status indicators
- Trip free mechanism
- Trip characteristic based on 40°C ambient for UL/CSA
- Global approvals for worldwide acceptance
- Switching Duty (SWD) Rating from 0.5 to 20A

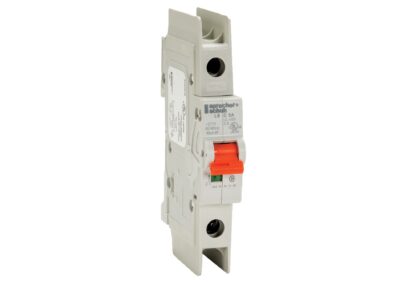

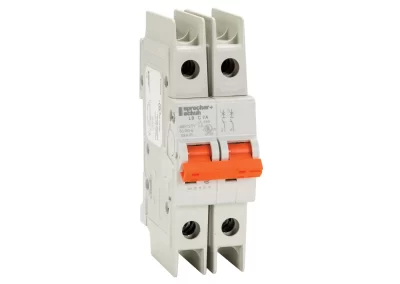

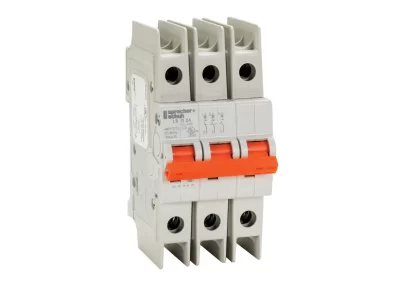

- 1-, 2-, and 3-pole configurations
- UL-489 listed for Branch Circuit protection and CSA 22.2 No. 5.1 Approved
- Thermal magnetic protection
- DIN rail mounting
Documentation Downloads
Overview

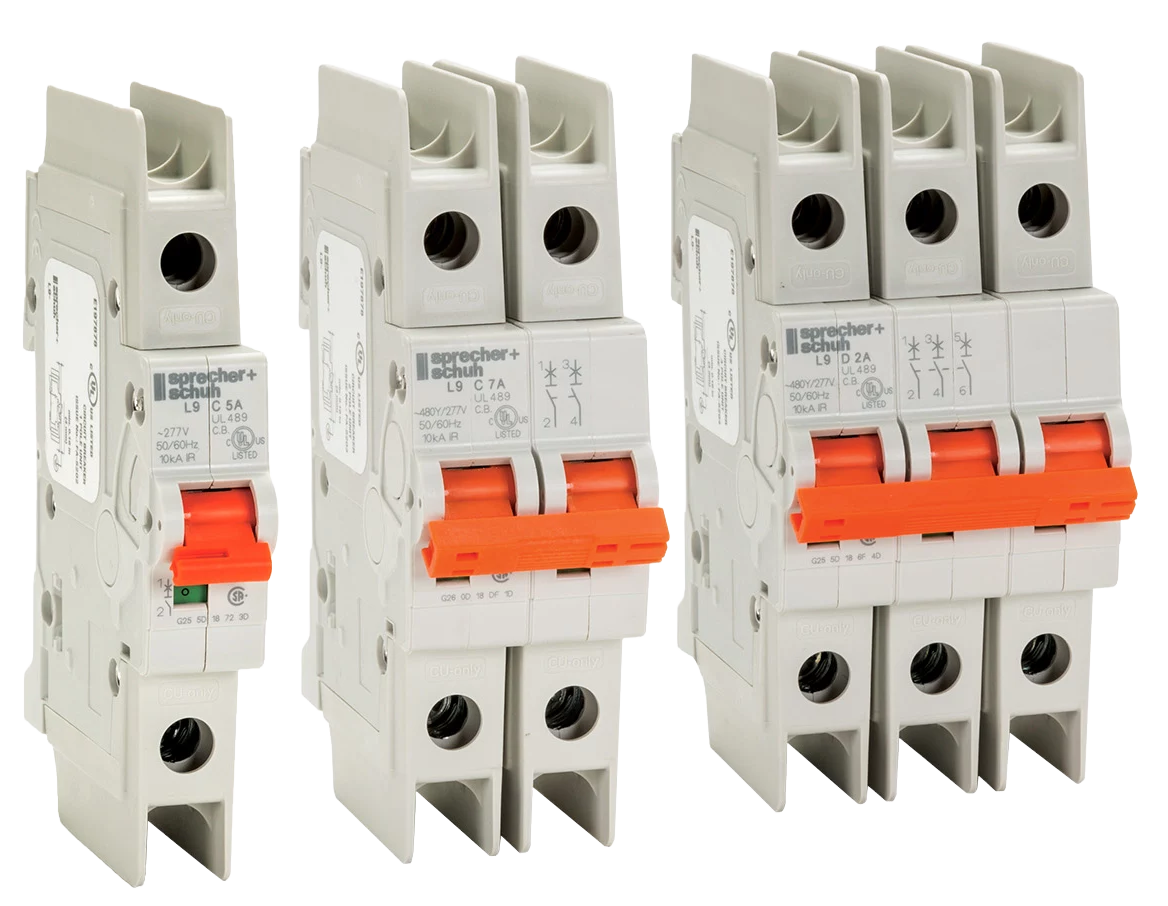

The Sprecher + Schuh L9 Miniature Circuit Breakers provide a variety of product configurations by offering cur- rent ranges of 0.5A to 63A with voltage ranges of 240V AC and 480Y/277V AC. The Series L9 DIN Rail-mounted circuit breakers are similar in width and current range to supplementary protectors with the added benefit of providing listed branch circuit protection for US/Canada applications.
Also available for control circuit applications are add-on auxiliary and signal contacts plus shunt trip modules to provide modern control circuit applications. A lock-off attachment is available for applications requiring that feature.
Product Comparison
L9 Miniature Circuit Breakers
- UL489 listed
- CSA 22.2 No. 5.1 approved
- Meets IEC 60 947-2.
- HACR rating (heating and air conditioning) as well as a “Switching Duty” (SWD) rating from 0.5 to 20A.

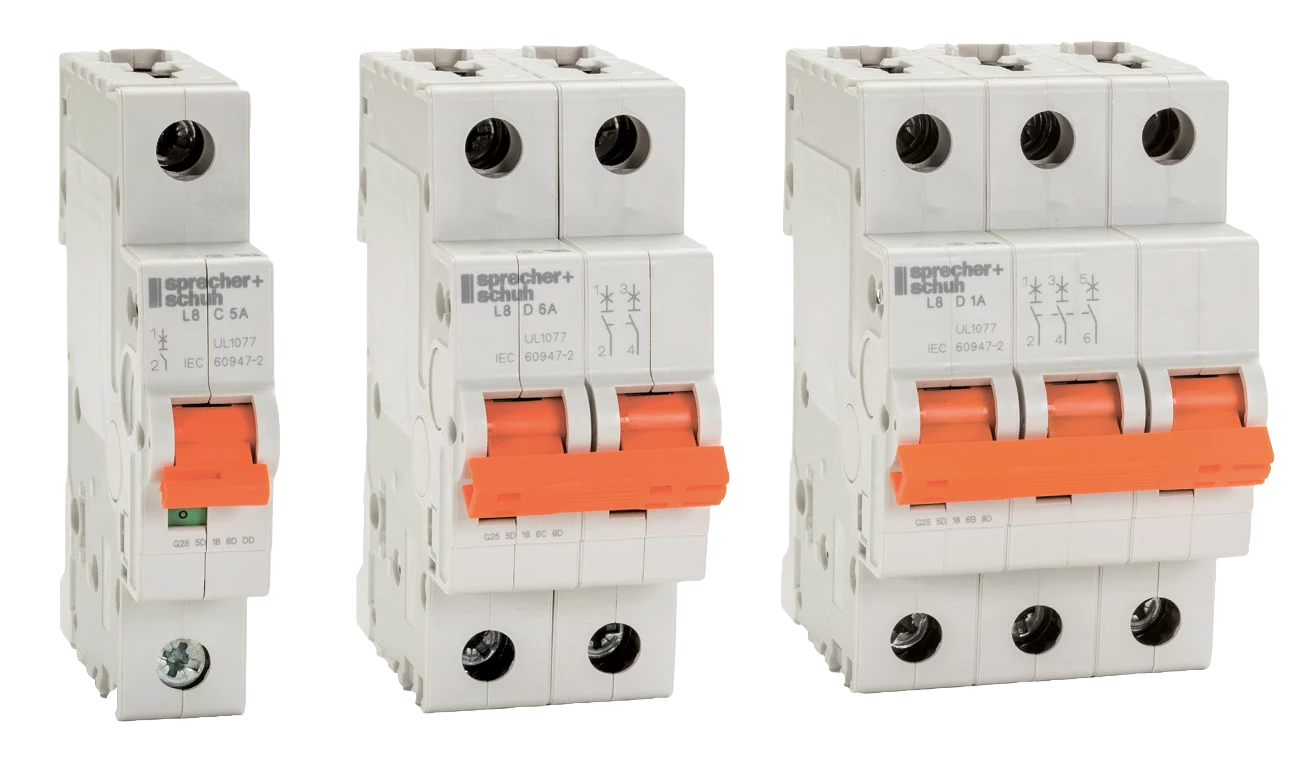

L8 Supplementary Protectors
