Series CA8 Contactors
Specifications
- Small And Rugged
- Electrical life of 700,000 operations
- Mechanical life of 10,000,000 operations.
- Accessories Require No Additional Panel Space
- Class 10 motor protection
- Manual or Automatic reset
- NO and NC contacts
- Adjustable overload dial
- Trip indication
Documentation Downloads
Overview

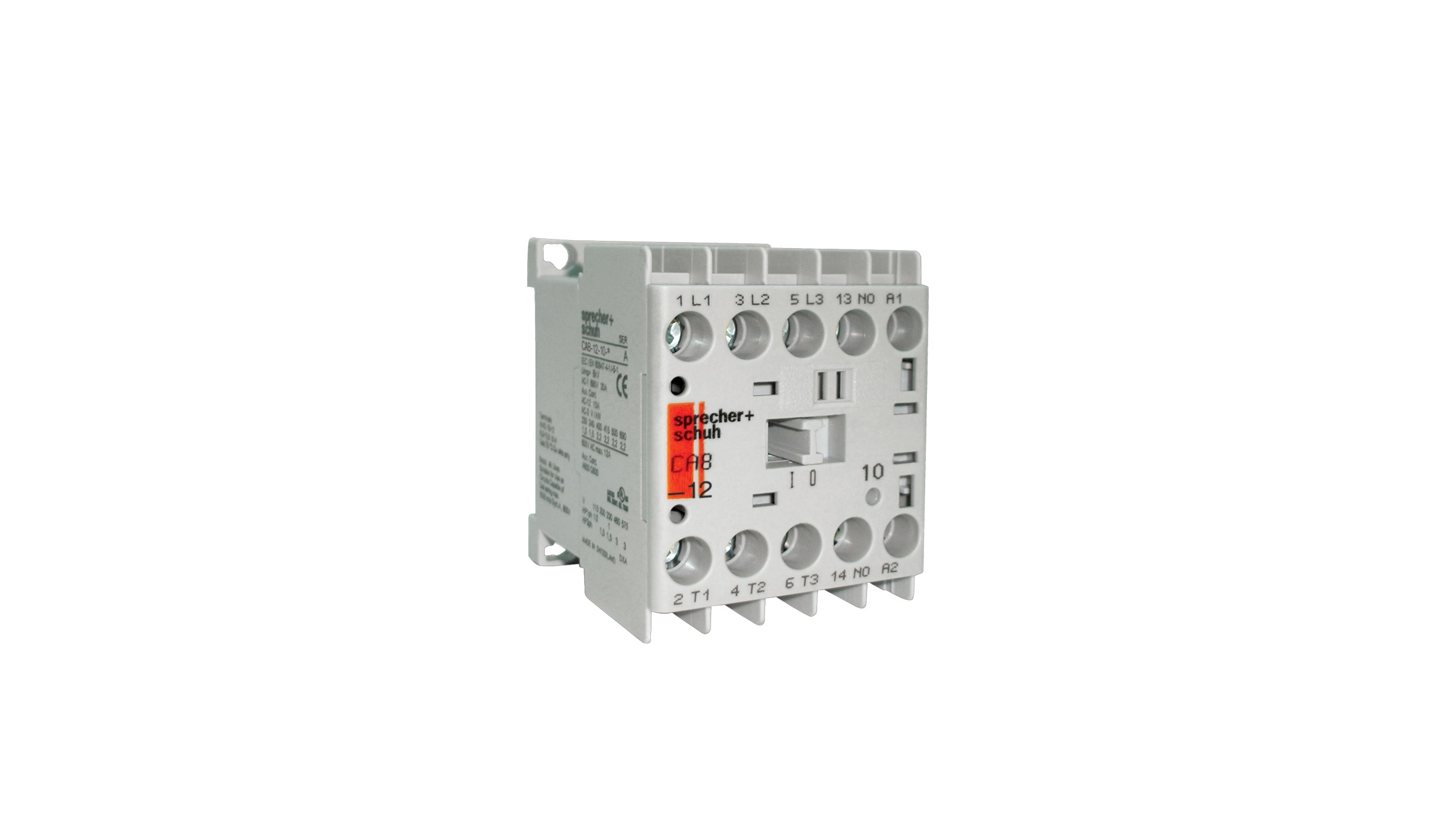

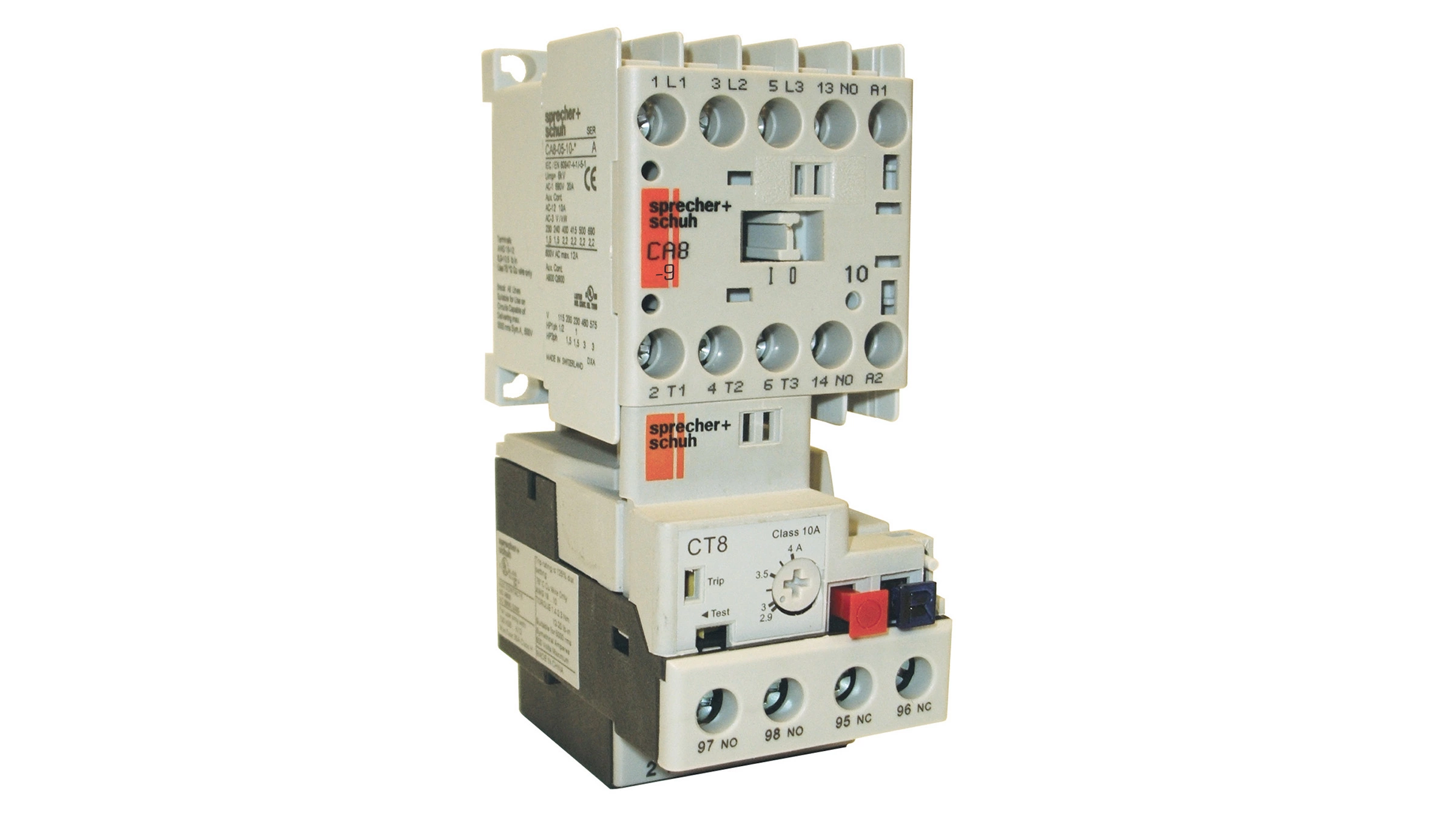

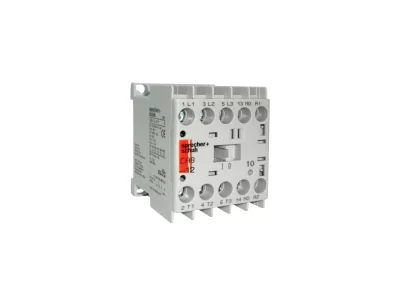

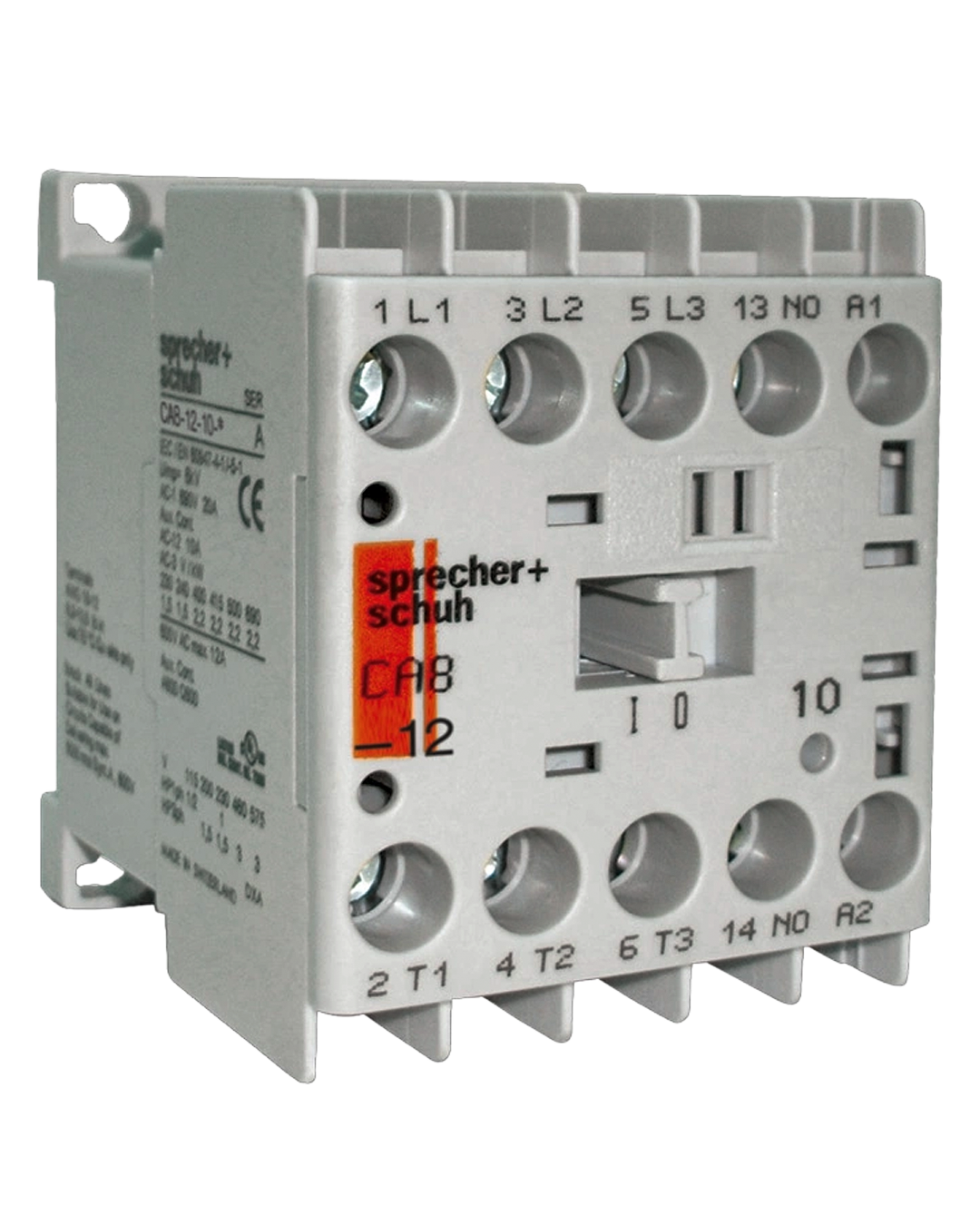

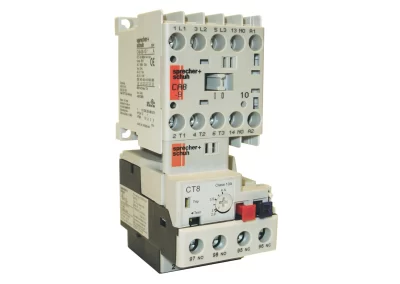

The CA8 miniature contactors and starters provide an extremely compact and reliable method of controlling motors of 7.5 HP or less (@460V). The CA8 contactor is an economical choice for applications where space is limited or where a minimal enclosure is desired. Components are DIN-rail mountable for instant installation and modification. Fittings are also included on the CA8 for base mounting. All terminals are clearly marked and shipped in the open position for installation with either manual or power screwdrivers.
Product Comparison
CA8 Series Contactors
CA7 Series Contactors
- Covers up to 75HP industrial applications
- Features small dimensions, as little as 45mm wide
- Uses interchangeable accessories for all contactor sizes
- Provides flexibility with reversible coils for group installation
- Has dual-cage clamp lugs on CA7-30 and larger units
- Designed and tested with respect to Type 1 and 2 Coordination
